Audible Physics

RAM 2.6 2 way Component Speakers

$ 630.00

Here is the third generation of Audible Physics RAM 2.6  Component set.

Audible Physics has refined the RAM 2.6 Components with the development of the new RAM 2 wideband drivers and the new RAM 6 B mid bass drivers.

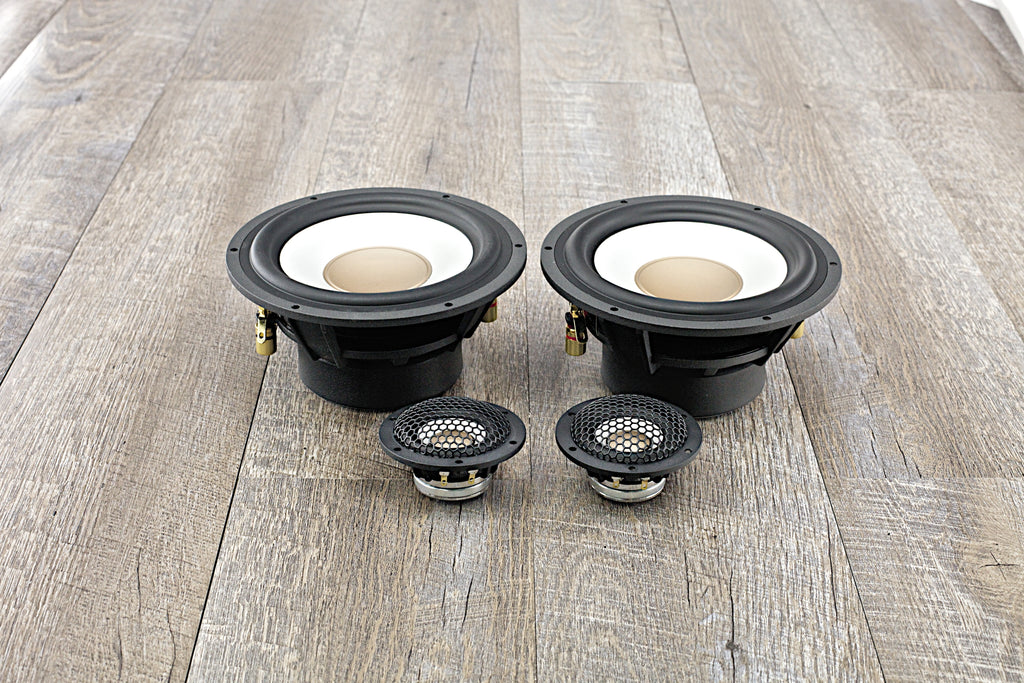

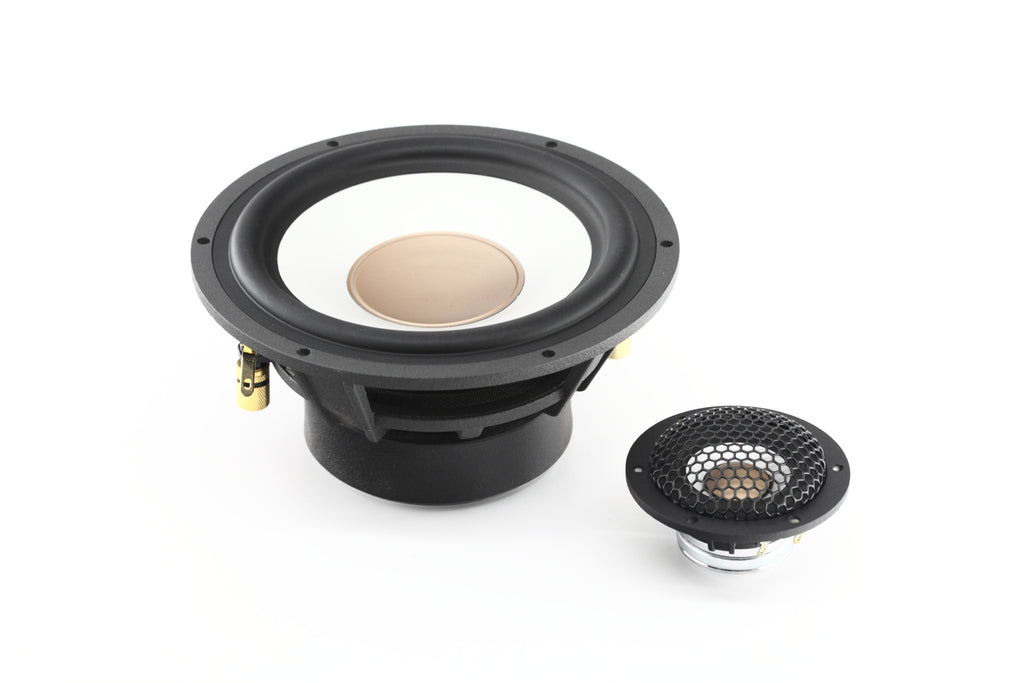

Set includes a pair of RAM 2 B and RAM 6B.

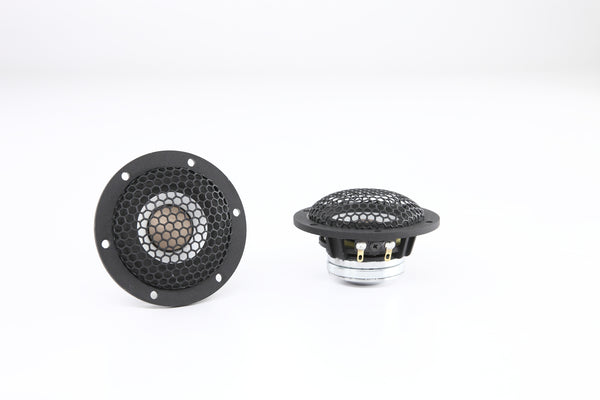

The RAM 2  driver features:
  • Advanced Underhung Topology
  • An Elegant Alloy Foil Cone and Cap
  • High Grade neodymium magnet
  • 5 mm high grade copper voice coil on aluminum bobbin
  • Integrated Protective Grill

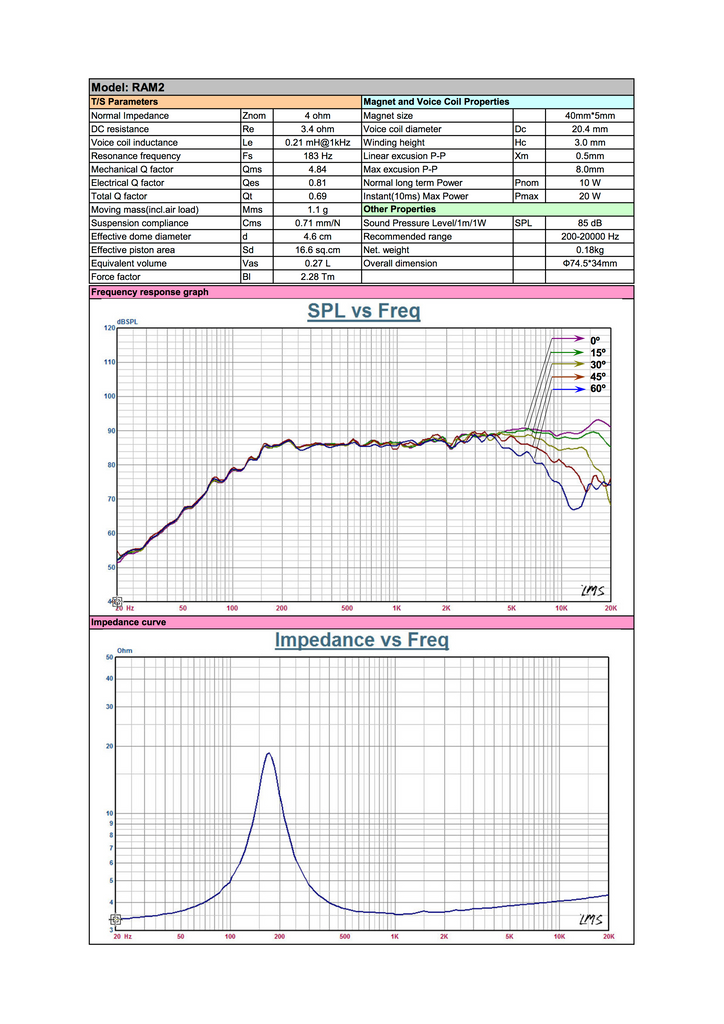

RAM 2 Specifications:
Outside Flange Diameter: 73.6 mm
Cut out dimension: 60mm
Mounting Depth: 29.1 mm
Net Weight: .18 kg / .52 lb
Nominal Power Handling: 10 watts
Nominal Impedance: 4 ohm
Sensitivity: 85 db / w / m
Frequency Response: 200 - 20,000 hz
Resonant Frequency: 183 hz
Voice coil diameter: 20.4 mm
Voice coil height: 3.0 mm
Voice coil former: Aluminum
Voice coil wire: Copper
Number of Layers: 2
DC resistance: 3.4 ohm
Magnet system type: Neodymium
BL:  2.28 TM
Max linear excursion: +/- .5 mm
Cms: 0.71 mm / N
Sd: 16.619 cm sq
Vas: 0.27 L
Mms: 1.1 g
Qms: 4.84 g
Qes: 0.81
Qts: 0.69



 The RAM 6 B driver features:

  • A Hard Alloy Cone and Cap
  • High Grade and Powerful Ceramic Magnet
  • Gold Plated Push Terminals
  • 38mm voice coil

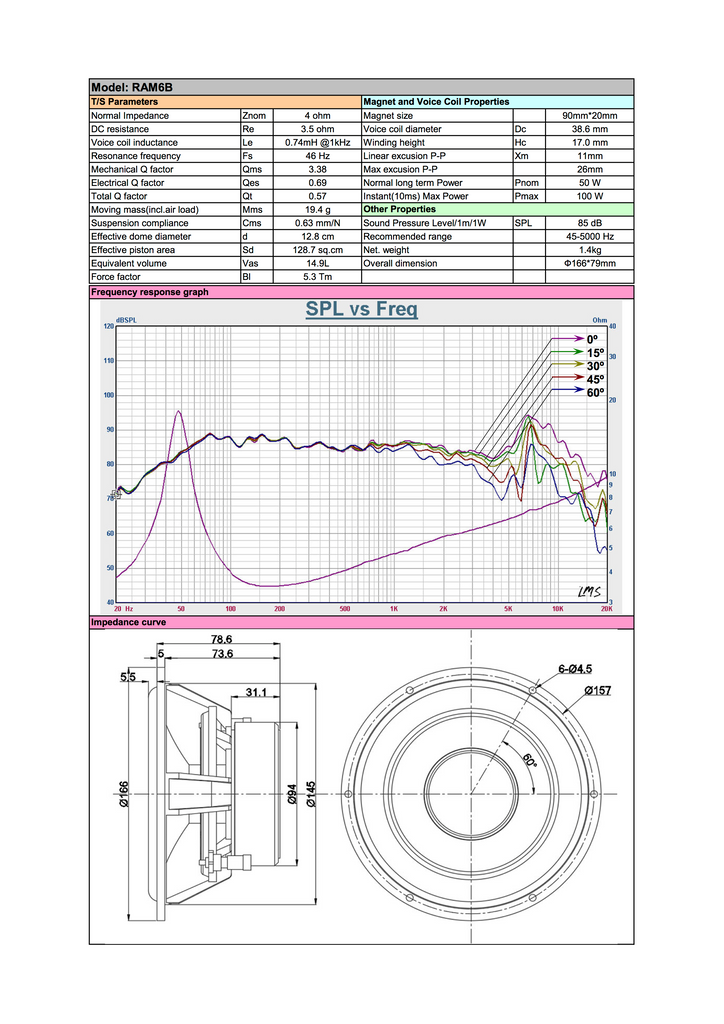

 RAM 6B Specifications:

Overall Diameter: 166 mm

Mounting Depth: 78.3 mm

Net Weight: 1.4 kg

Nominal Power Handling: 50 watts

Nominal Impedance: 4 ohm

Sensitivity: 86 db / w / m

Frequency Response: 50 – 5000 hz

Resonant Frequency: 52 hz

Voice coil diameter: 38.6 mm

Voice coil height: 15 mm

Voice coil former: Kapton

Voice coil wire: Copper

Number of Layers: 2

DC resistance: 3.3 ohms

Magnet system type: High Grade Ceramic

BL: 5.6 TM

Linear Excursion P-P:  8 mm

Cms: .57 mm / N

Sd: 128.7 cm sq

Vas: 13.3 L

Mms:  20.4g

Qms: 6.42

Qes: .53

Qts: 0.49

Sold as a paired set.
