GANESHA by Audible Physics

$ 810.00

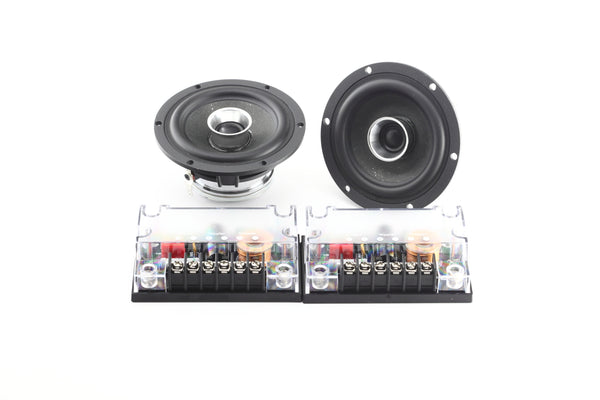

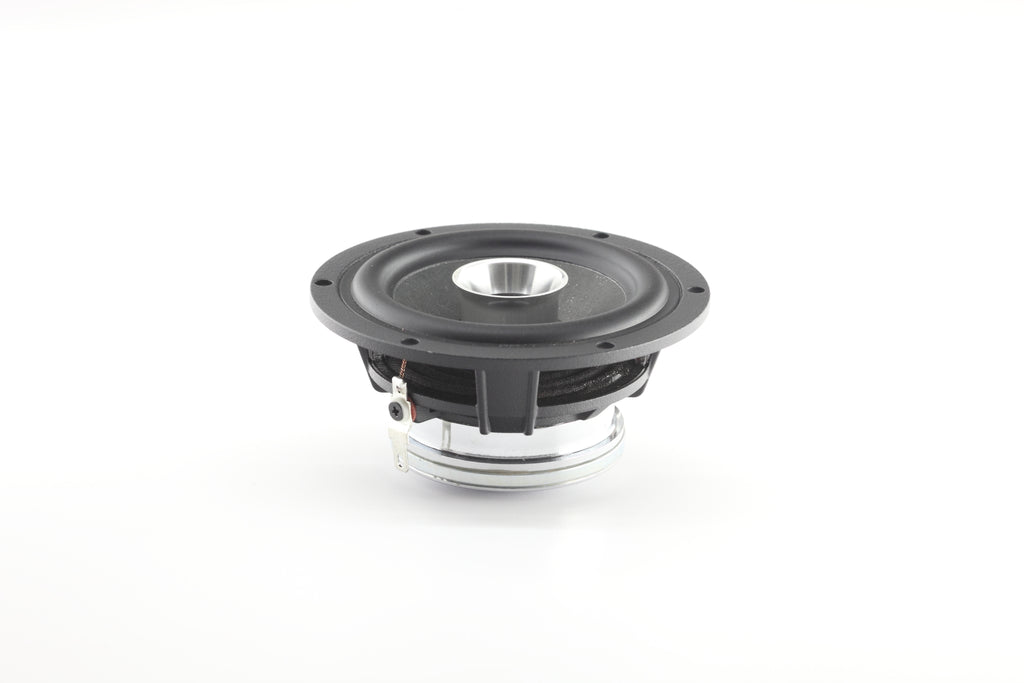

GANESHA BY AUDIBLE PHYSICS



The GANESHA is an exciting new product and the first of it’s kind from Audible Physics.

The point source design will help overcome obstacles for traditional auto installations.   The size is quite compact and will fit in many factory locations.

Having the sound come from one point source will help stabilize the staging and help focus.



Features:



100mm paper mica cone

15mm soft dome tweeter that is horn loaded

Large and powerful high-grade neodymium motor

25mm high-grade copper voice coil

Passive Crossover included

Metal Grills included

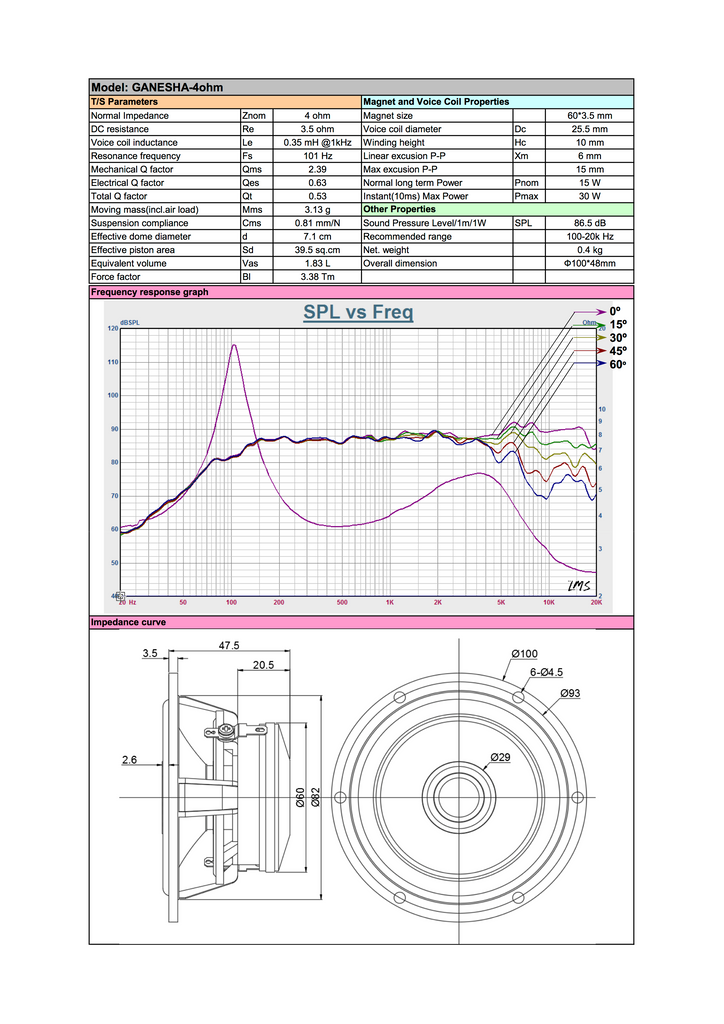

Specifications:

            SPL                              86.5 1 m/ 1 watt

Znom                          4 ohm

            Re                                3.5 ohm

            Le                                .35mh @ 1khz

            Fs                                101 HZ

            Qms                            2.39

            Qes                              0.63

            Bl                                 3.38 Tm

            Linear Excursion       6mm Point to Point

            PNOM                         15 watts

            Overall Diamter         100mm / 3.93”

            Cutout Dimensions   82mm / 3.22”

            Mounting Depth        44mm / 1.73”
